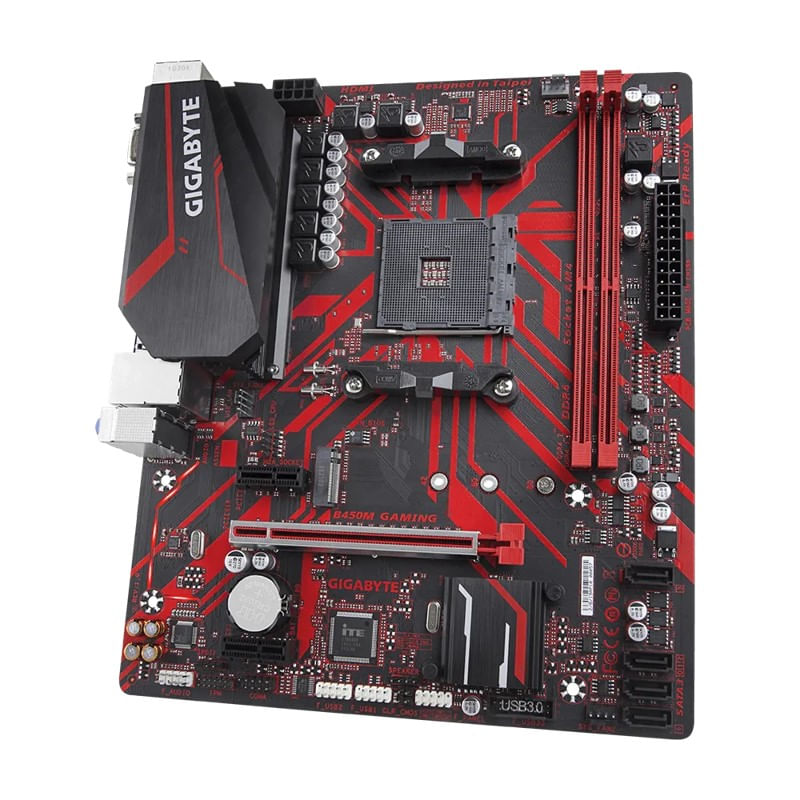

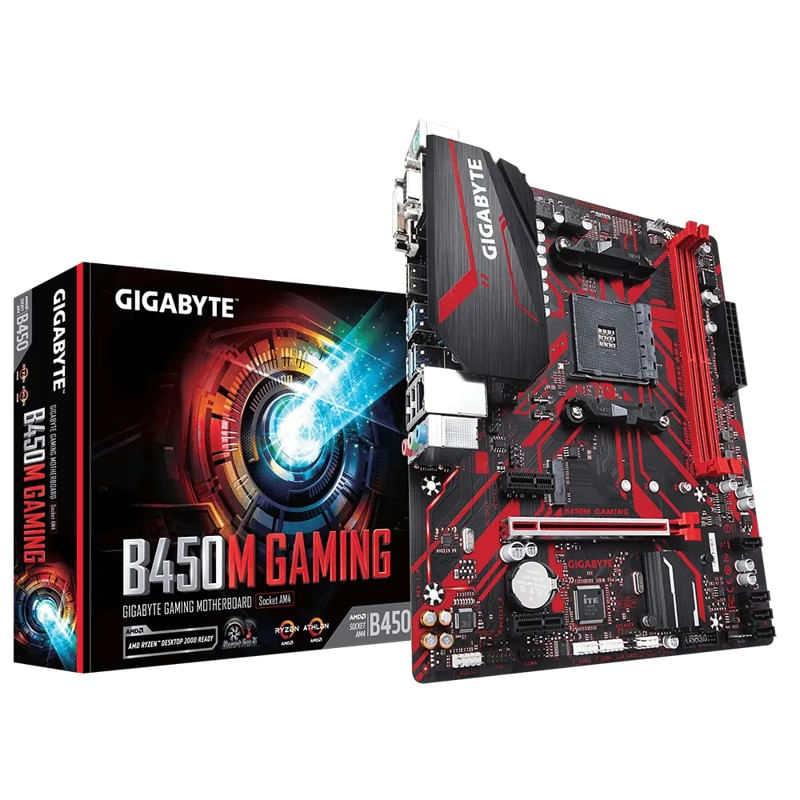

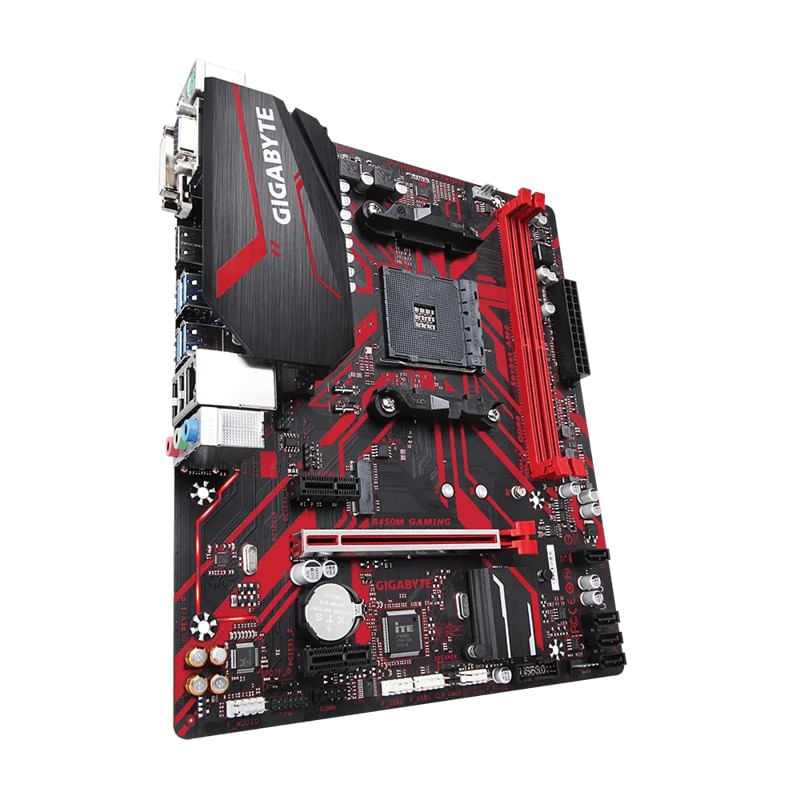

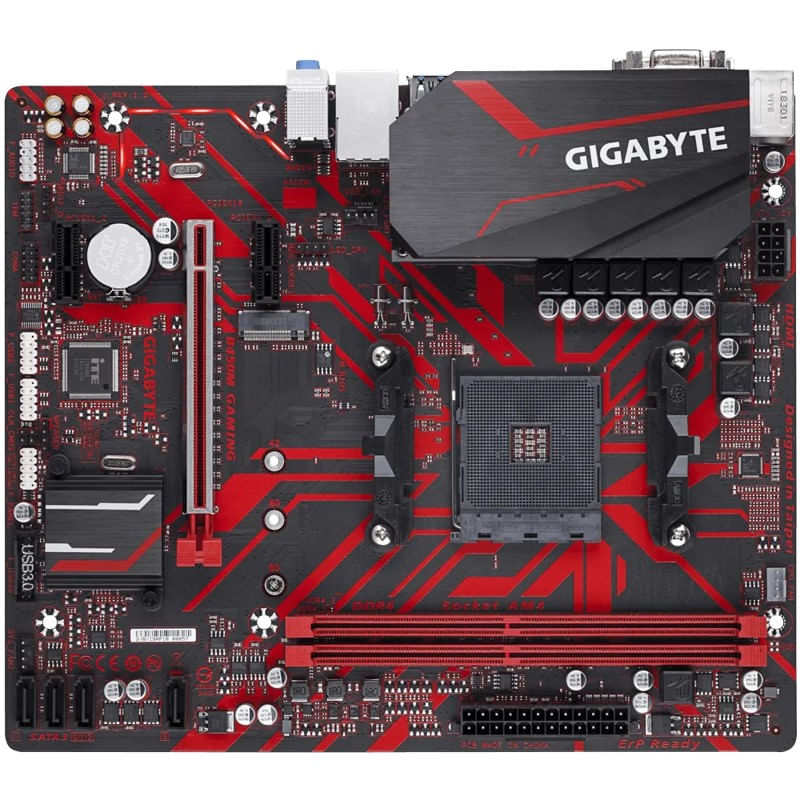

Placa Mãe Gigabyte Micro ATX AMD AM4 DDR4 B450M Gaming
R$ 818,95 no pix
Consultar formas de pagamento
Quantidade
Placa Mãe Gigabyte Micro ATX AMD AM4 DDR4 B450M Gaming
Descrição do produto
A placa-mãe GIGABYTE B450M GAMING rev.?1.x une performance e economia para gamers e criadores que buscam um setup sólido com processadores AMD Ryzen. Com chipset B450 e soquete AM4, oferece suporte nativo a CPUs Ryzen das séries 1000, 2000, 3000 e até 5000, com possibilidade de atualização de BIOS para compatibilidade ampliada.
Ideal para builds compactos (formato micro ATX), conta com dois slots DDR4 que aceitam até 64?GB em dual channel e frequências de até 3600?MHz em overclock. A entrada M.2 PCIe Gen3 x4 permite instalar SSD NVMe de alta velocidade, complementada por quatro portas SATA para múltiplos discos.
Para jogadores, oferece slot PCIe 3.0 x16 e LAN Realtek Gigabit com gerenciamento de largura de banda, garantindo conexões estáveis durante partidas online. O áudio é de alta definição, com capacitores premium, enquanto o sistema Smart Fan 5 assegura refrigeração inteligente e eficiente.
Com RGB Fusion personalizável e suporte a softwares como EasyTune, é a escolha certa para quem busca uma placa-mãe robusta, versátil e com excelente custo-benefício.
Especificações
Tempo de Garantia
12 Meses
Origem
Nacional
Ficha Tecnica
MARCA | Gigabyte |
MODELO | B450M GAMING |
CPU | AM4 Socket: Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors |
(Please refer "CPU Support List" for more information.) | |
CHIPSET | AMD B450 |
MEMÓRIA | 2 x DDR4 DIMM sockets supporting up to 64 GB of system memory |
Dual channel memory architecture | |
Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules | |
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
? | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
Support for Extreme Memory Profile (XMP) memory modules | |
(Please refer "Memory Support List" for more information.) | |
GRÁFICOS ONBOARD | Integrated Graphics Processor: |
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz | |
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz | |
* The DVI-D port does not support D-Sub connection by adapter. | |
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
* Support for HDMI 2.0 version and HDCP 2.2. | |
* Actual support may vary by CPU. | |
Maximum shared memory of 16 GB | |
ÁUDIO | Realtek® Audio CODEC |
High Definition Audio | |
2/4/5.1/7.1-channel | |
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. | |
Support for S/PDIF Out | |
LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
SLOTS DE EXPANSÃO | 1 x PCI Express x16 slot, running at x16 |
(The PCIEX16 slot conforms to PCI Express 3.0 standard.) | |
2 x PCI Express x1 slot | |
(The PCI Express x1 slot conforms to PCI Express 2.0 standard.) | |
INTERFACE DO ARMAZENAMENTO | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support) |
* Actual support may vary by CPU. | |
* Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU. | |
4 x SATA 6Gb/s connectors | |
Support for RAID 0, RAID 1, and RAID 10 | |
USB | Chipset: |
2 x USB 3.1 Gen 1 ports available through the internal USB header | |
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
CPU: | |
4 x USB 3.1 Gen 1 ports on the back panel | |
CONECTORES INTERNOS I/O | 1 x 24-pin ATX main power connector |
1 x 8-pin ATX 12V power connector | |
1 x CPU fan header | |
2 x system fan headers | |
1 x M.2 Socket 3 connector | |
4 x SATA 6Gb/s connectors | |
1 x front panel header | |
1 x front panel audio header | |
1 x S/PDIF Out header | |
1 x CPU cooler LED strip/RGB LED strip header | |
1 x USB 3.1 Gen 1 header | |
2 x USB 2.0/1.1 headers | |
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
1 x speaker header | |
1 x serial port header | |
1 x Clear CMOS jumper | |
1 x chassis intrusion header | |

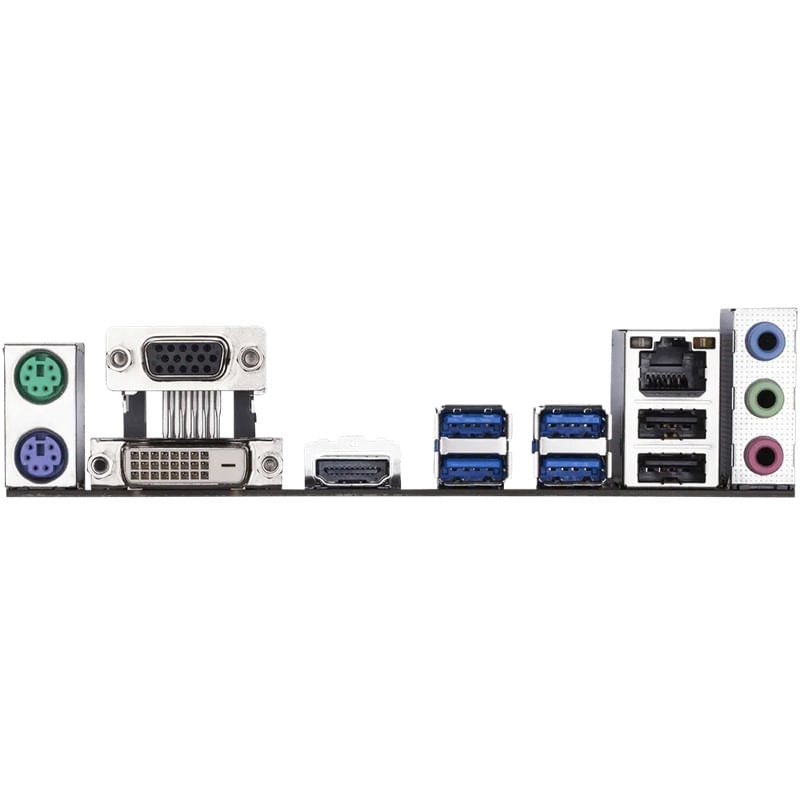

CONECTORES DO PAINEL TRASEIRO | 1 x PS/2 keyboard port |
1 x PS/2 mouse port | |
1 x D-Sub port | |
1 x DVI-D port | |
1 x HDMI port | |
4 x USB 3.1 Gen 1 ports | |
2 x USB 2.0/1.1 ports | |
1 x RJ-45 port | |
3 x audio jacks | |
CONTROLADOR I/O | iTE® I/O Controller Chip |
MONITORAMENTO H/W | Voltage detection |
Temperature detection | |
Fan speed detection | |
Overheating warning | |
Fan fail warning | |
Fan speed control | |
* Whether the fan speed control function is supported will depend on the cooler you install. | |
BIOS | 1 x 128 Mbit flash |
Use of licensed AMI UEFI BIOS | |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
CARACTERÍSTICAS EXCLUSIVAS | Support for APP Center |
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
3D OSD | |
AutoGreen | |
Cloud Station | |
EasyTune | |
Fast Boot | |
Game Boost | |
ON/OFF Charge | |
RGB Fusion | |
Smart Backup | |
Smart Keyboard | |
Smart TimeLock | |
Smart HUD | |
Smart Survey | |
System Information Viewer | |
USB Blocker | |
Support for Q-Flash | |
Support for Xpress Install | |
PACOTE DE SOFTWARE | Norton® Internet Security (OEM version) |
Realtek® 8118 Gaming LAN Bandwidth Control Utility | |
SISTEMA OPERACIONAL | Support for Windows 10 64-bit |
Support for Windows 7 64-bit | |
* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. | |
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7. | |
FATOR FORMA | Micro ATX Form Factor; 24.4cm x 20.5cm |
